Sprite Manager

PreviousResource ManagerNextLayout Manager

Last updated 5 months ago

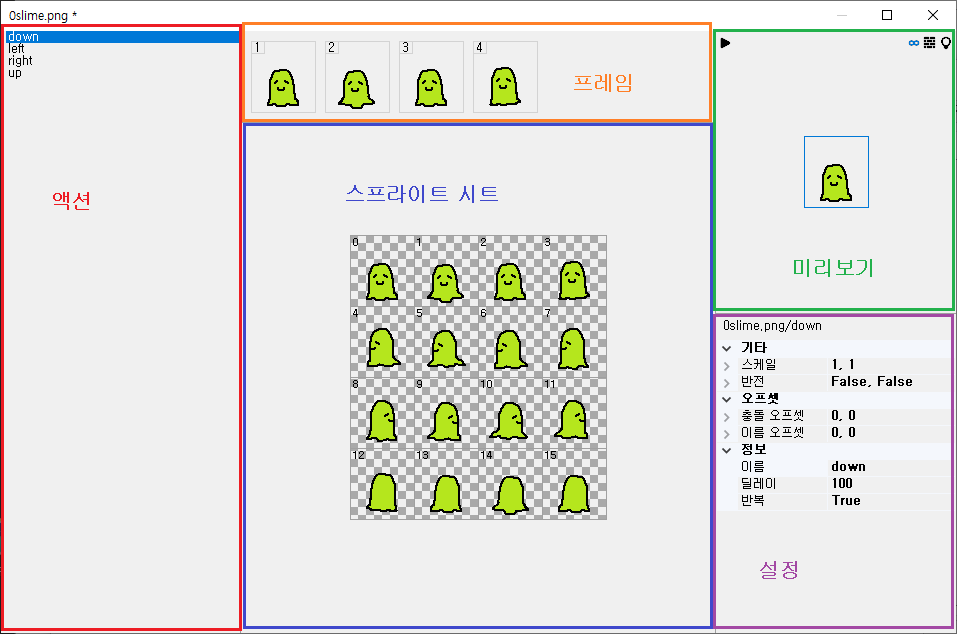

Clicking [Settings] under [Resource Manager] opens the Sprite Manager. You can configure detailed settings for the sprite's actions (e.g., character motions) and images.

[Sprite Sheet]

You can view the entire image and divide it into frames by specifying a grid (array). Frames can be added by dragging or clicking to specify the frame area.


[Action]

An action represents a unit of motion used for character animations. You can name actions appropriately based on their purpose to implement suitable motions.


[Frame]

Frames are the building blocks applied to actions. Click on the cells divided by the grid in the sprite sheet to add and edit frames.

  • When adding a frame, it is created immediately after the currently selected frame.

  • To deselect a selected frame, click on an empty area in the frame section.


[Preview]

  • Play: Preview the selected action by playing it.

  • Repeat: Toggle whether the playback should loop.

  • Collision Range: Used for animation hitboxes or event ranges for NPC-type units.

  • Ambient Light: Adjusts the brightened area surrounding the sprite when environmental lighting is set.

[Settings]

This function allows you to configure the properties of the selected area.

  • Sprite Sheet Area: Example: 0slime.png (Sprite)

  • Action Area: Example: 0slime.png/down (Action: down)

  • Frame Area: Example: 0slime.png/down/#1 (Frame: #1 of the "down" action)

At the top of the settings window, the navigation bar displays the current focus, helping you identify which area is being configured.

[Menu Configuration]

Add

  • Right-Click on the Action Section: Right-click and select Add to create a new action.

  • When an action is selected, left-click on an image in the sprite sheet to add it to the frame list.

Delete

  • Select the action or frame you want to delete, then press the Delete key to remove it.

Cut, Copy, and Paste

  • To copy and paste an action or frame: Select it and press Ctrl + C to copy and Ctrl + V to paste.

  • To cut an action or frame: Select it and press Ctrl + X.

👑
